Scientists have implemented machine learning (AI) combined with cost-effective, readily available technology to transform the magnitude of Wi-Fi signals into approximations of an individual’s pulse.
This mechanism, known as Pulse-Fi, demonstrates remarkable accuracy that remains consistent irrespective of posture or distance, according to a report by the researchers. The report was issued Aug. 5 in the publication of the 2025 IEEE International Conference on Distributed Computing in Smart Systems and the Internet of Things (DCOSS-IoT).
You may like
-
Scientists pioneer world’s first microwave-powered computer processor — providing faster performance and reducing power consumption over conventional CPUs
-
Innovative smart ring offers unique computer control — challenging the long-standing reign of the mouse
-
4 explanations for giving up on fitness bands (and strategies to overcome these)
Several in-house technologies, for example, chest-strap devices and smartwatches, track significant indicators, like pulse rate and breathing rhythm. However, these apparatuses need consistent physical proximity and are costly, thus, driving the demand for contactless innovations.
One such method can utilize data from Wi-Fi broadcasts, radio frequencies transferring information between a source and a device, for instance, between a router and a computer.
The “channel state information” (CSI) shows the signal’s strength and phase as it travels between the specified gadgets, even when traveling through obstructions like moving chests. Given that these signals distort when bypassing such obstacles, experts have the ability to refine the CSI data to obtain key indicators.
Currently, a number of instances can be found with Wi-Fi based pulse reading. Kocheta and associates, however, stated that a few limits are evident. For instance, several are supported by outmoded gear. The team built a recent framework termed “Pulse-Fi” to resolve these constraints.
Capturing vital signs
The crew positioned seven people — five males and two females — amongst a pair of single-antenna ESP32 devices to accumulate relevant data for testing Pulse-Fi. These micro controller systems emitted Wi-Fi transmissions, where one served as the issuer and the other as the receiver. A pulse oximeter secured to the participant’s fingertip was applied to gather each volunteer’s real-time heartbeat.
Each subject partook on three separate occasions: first from 3.3 feet (1 meter) away from the EPS32s, subsequent times at 6.6 feet (2 m) and 9.8 feet (3 m) intervals. Each recording timeframe lasted five minutes.

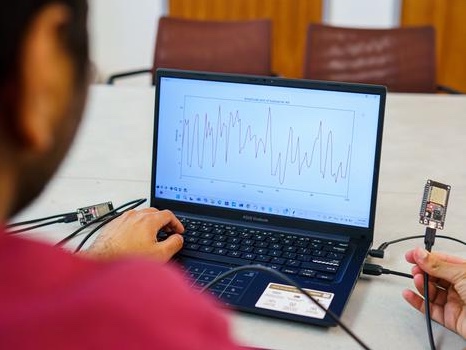

Nayan Bhatia showcases Pulse-Fi
Afterward, the crew developed a machine learning process to determine heart rates from the CSI. The initial stage involved taking out the data about the magnitude, which ties to singular cardiac events, and then cleaning the impure pieces of the signal coming from environmental hindrances.
You may like
-
Scientists pioneer world’s first microwave-powered computer processor — providing faster performance and reducing power consumption over conventional CPUs
-
Innovative smart ring offers unique computer control — challenging the long-standing reign of the mouse
-
4 explanations for giving up on fitness bands (and strategies to overcome these)
Subsequently, the researchers applied a mechanism to strip out signal frequencies past the 0.8-to-2.17-hertz field, which corresponded from 48 to 130 pulses for each minute (BPM). They then set up another filter to polish the signal even more.
The team then approximated the volunteers’ pulse rate by using a continuous neural network with long-term-short-term memory; this version of machine learning provides “memory cells” for processing successive data to find patterns in the information. In this case, these patterns are tied to attributes similar to resting heartbeat or exercise-triggered peaks in BPM.
The crew was astonished to learn that the heartbeat approximations continued to be precise at assorted ranges from the ESP32 systems. Pulse-Fi under- and over-estimated heartbeat with a median value of 0.429 BPM at 1 meter, 0.482 BPM at 2 m, and 0.488 BPM at 3 m ranges.
Then, the researchers utilized existing Wi-Fi CSI wellness data to evaluate the performance of Pulse-Fi with differing poses and behaviors. Data were compiled from 118 individuals in Brazil who took on 17 fixed and moving positions, which encompassed sitting, marching, and cleaning, for 60 seconds. The participants were 3.3 feet (1 m) distant from both the Wi-Fi sender and device, and from a Raspberry Pi 3B+ used for amassing CSI data.
They checked the neural network pulse estimations against smartwatch metrics. The Pulse-Fi continued to function independent of a person’s posture. Typical inaccuracy measured 0.2 BPM.
Wireless beats
This early methodology has theoretical appeal, stated Andreas Karwath, a health data scientist from the University of Birmingham in the U.K. not participating in this research.
However, he indicated a basic constraint exists due to using the same data for instruction, validation, and evaluation. While the researchers rearranged the data each time, Karwath stated a self-fulfilling prophesy gets made.
“It’s analogous to predicting a disease in an individual based on what was learned from this same individual and then trying to predict that same individual again,” he communicated with Live Science. “It’s illogical.”
In a response to this commentary, the researchers mentioned that while the evaluation included data rearrangement, they have consequently reviewed the mechanism in real time, where Pulse-Fi was prepared exclusively on past information then judged on a completely fresh signal with a new environment. This research has not been released yet.
Karwath also elucidated that the smartwatch and oximeter used to gather heartbeat information to measure neural network performance are not reliably 100% exact, therefore, the data may be tainted.
RELATED STORIES
—On average, how frequently does a heart beat during a full day? Or, over a life?
—Upcoming wearable devices could get powered from within a body using ambient 6G cellphone frequencies
—How do wellness trackers calculate a pulse rate?
Kocheta, Bhatia and Obraczka identified this smartwatch shortfall. Yet “the pulse Oximeter is almost universally accepted as a proven medical instrument boasting remarkable accuracy,” as they clarified.
The researchers now wish to expand Pulse-Fi testing to track the heartbeat rate of many persons inside an area simultaneously to determine how well the algorithm performs under crowded conditions.
The authors have stated that no distinct individual data gets involved in the data application structure. Thus, there are virtually no data privacy concerns regarding this technology. Karwarth has stated that the technology is no less than five to 10 years off of the market.
